Mounting Adaptor

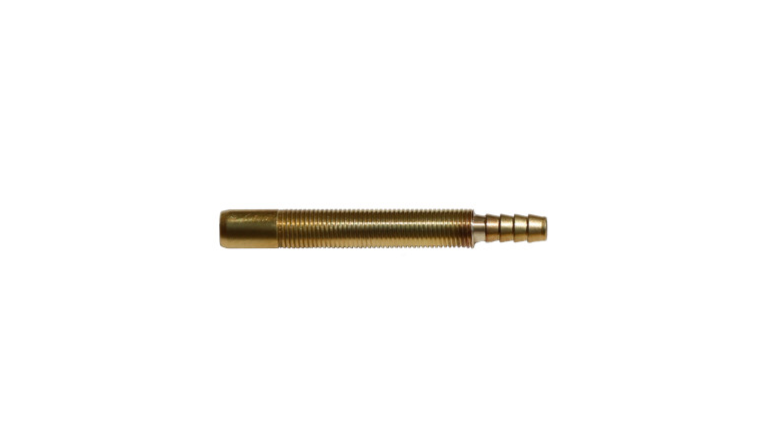

The system adapter ST1 is a simple adapter with a pressure connection via a hose nozzle. Only probes with the ST1 end piece, either 30 or 40 mm in length, can be inserted.

The system adapter ST2 enables the transmission of two pressures. The separation of the pressures takes place at the end piece of the probe. Only probes with the ST2 end piece can be inserted. The hose connections are compatible with tubing that has an inner diameter of 4 mm.

The adapter ST1R-6 is a simple adapter with a straight pressure connection. This adapter is intended as a replacement for an existing mount on the fuselage back or nose in confined installation situations. Only probes with the ST1-6|35 mm end piece can be inserted.

The mounting adapter SUN is a multi-adapter and distributes three different pressures to three 6 mm hose fittings. Unlike the UN mounting adapter, it can be fitted with probes ending with /UN and additionally with /ST1 -30mm and /ST2. To make this possible, a single interchangeable insert (wTEK) or double (wStaTEK) can be plugged into the adapter. The unused port of the adapter is thereby shut down for the duration of use. End piece A = no mounting hole, straight back. Tip: the system adapter should be installed with the hose fittings oriented upwards to prevent the ingress of water into the system.
