Description

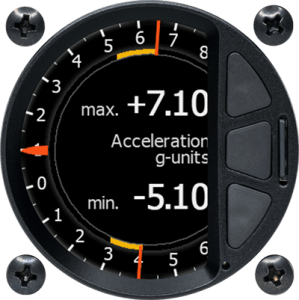

G-meter
Intuitive standalone digital G-meter with built-in Flight recorder!
Standalone G-meter indicates and logs g-forces with an integrated high precision digital pressure sensor and inertial platform. The unit has standard dimension of 57 mm (2,25″) diameter.
3 Push Buttons. SD Card.
Used for a simplified handling during the flight or ground operations. Micro SD card for data exchange (SW update and Flight downloads).
INERTIAL PLATFORM. LIMITS.

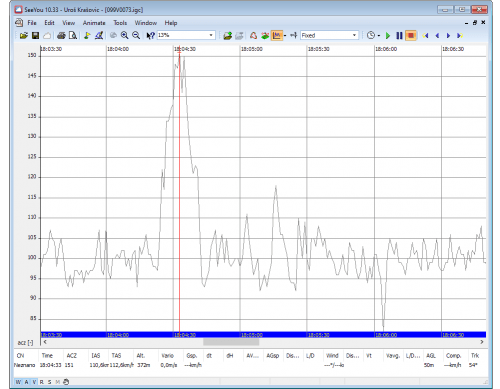

Inertial platform with +-16g accelerometer. Device is showing current g-load in navbox/needle and it’s min-max values in bar. Last flight min/max load navboxes are persistent till next flight. Min/Max limits with Warning zones can be defined.
MicroSD card socket for data exchange and ALS for energy saving.
Metric or Imperial or Custom units!
DISPLAY.
Real Time Data is displayed on a QVGA 320×240 pixel 2.5-inch high brightness colour display.
